The GPIO APK, called KIWI Control, is a specialized Android application designed to interface with the GPIO pins on KIWI310. This application is essential for users who need to control and monitor the GPIO pins directly, facilitating the easy management of hardware components. By providing a seamless and intuitive method for hardware interaction, the GPIO APK enhances the functionality and versatility of KIWI boards in various applications. To learn more about what an APK is, please refer to our previous article.

Launch the GPIO APK

Before launching the KIWI Control App, the tty port permissions corresponding to Android must be enabled from the system side. Open "Terminal Emulator", run "su" to enter super user mode, and then configure the permissions (chmod 777 /dev/ttyACM0)

Then click on the KIWI Control icon under the menu. The app will automatically open and display the available tab functions. A window will open and show three tabs.

Version : Shows the current  version of the MCU firmware

I/O : Allows the control and monitoring of the PWM and digital inputs/outputs.

Control: Read signals from devices connected to the I2C pins.

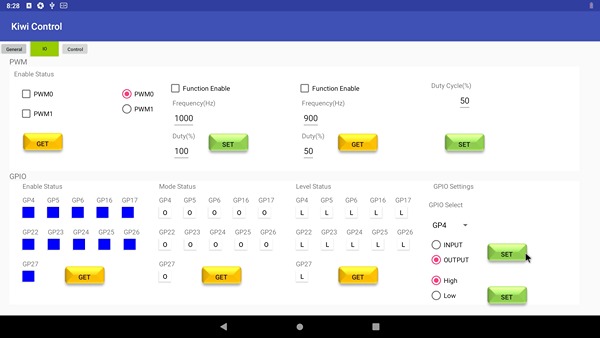

Configure and Control IO Tab

This tab has two primary functions for monitoring and control: PWM and GPIO.

- To configure the PWM, select the checkbox to enable the corresponding PWM0/PWM1 port function for testing and press the SET button.

-To verify the status of the PWM port, click the GET button. The checkbox for the enabled PWM ports will be automatically selected.

-To set the Duty Cycle, write the desired value in the box and press the SET button. Please refer to our previous article for a detailed explanation of how PWM operates in KIWIboards.

-To verify the status of the duty cycle in the PWM port, click again on the GET button.

-For the GPIO pins, individually select the pin number from the combo box and set it as input or output.

- Press the corresponding SET button

-For output settings, choose between high or low signals; press the corresponding SET button after configuring each setting.

- For monitoring the signals, press GET button.

Configure and Control Tab

This tab allows you to send signals to control external components or read signals from sensors connected to the I2C pins.

-For setting the I2C, tick on the box of I2C Enable and Repeat, and then press the SET button and confirm it was enabled by pressing the GET button.

-Fill in the sensor's slave ID address.  According to the datasheet, by default, the VEML 7700 has a 0x10 ID address and requires writing a 0x00 command for selecting ALS gain to 1. Use the WRITE button to send the word type data LSB 0x90 and MSD 0x20 data. ( For LSB, choose 0x90 to write the data and 0x92 to read the data)

-Use the 0x04 command to read the 16-bit high-resolution ALS output data of the sensor's luminosity and press the READ button.
